Settings

Settings give you technical control over how specs are created — the same settings surface drives both the Figma plugin and the CLI, so a component produces the same structured output no matter which one generates it.

Figma Plugin

The plugin’s Settings tab exposes the same options as the CLI’s config file, right next to the canvas where you’re generating specs.

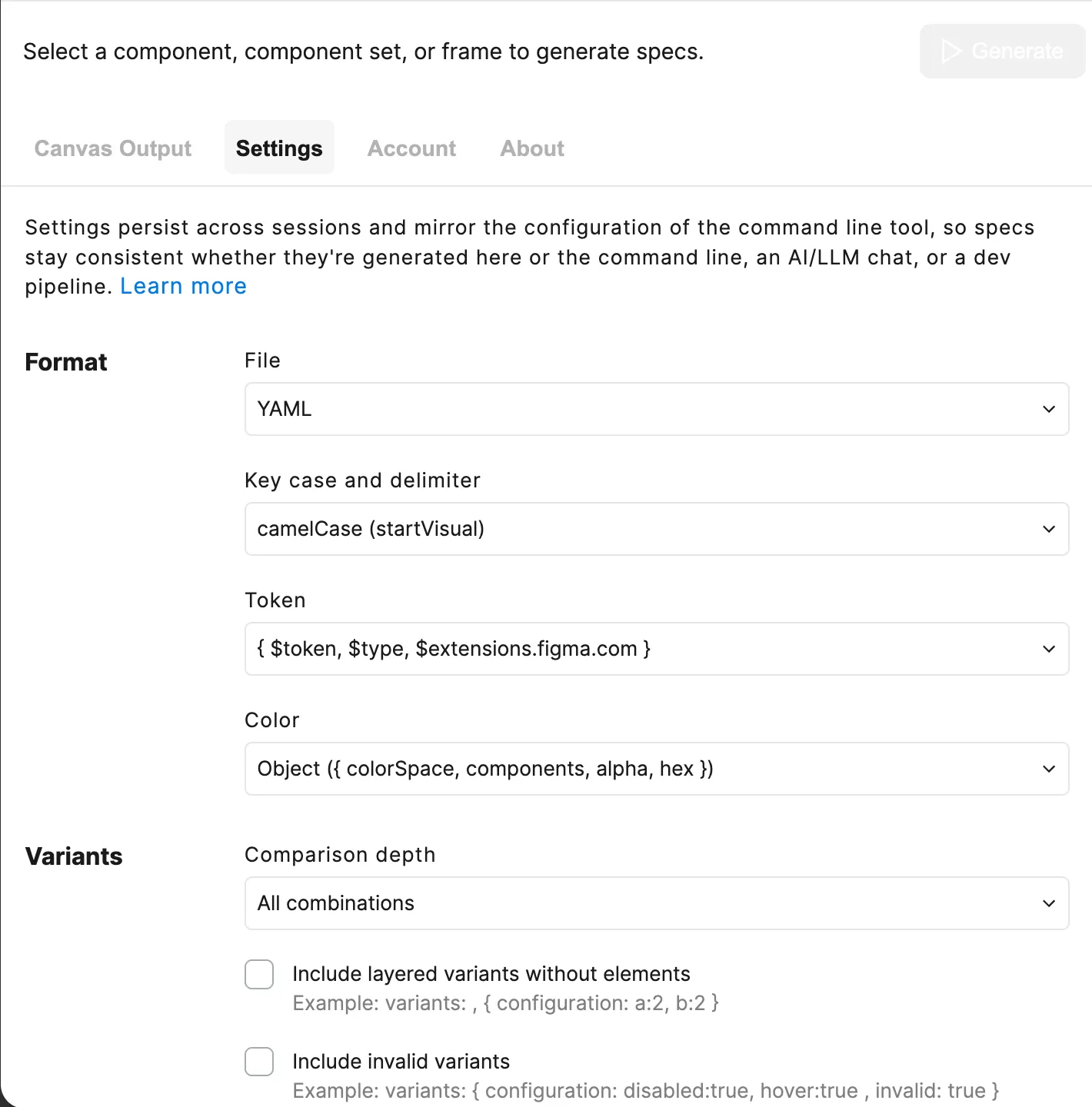

The Format section of the plugin's Settings tab.

Format

The Format section controls how spec data is serialized once it’s extracted:

• Output Format — Serializes specs as YAML or JSON
• Keys — Renames keys, such as camelCase or snake_case
• Tokens — Serializes as forms such as a name string or { $token, $type } object
• Color — Formats color, such as #FF6600 or { colorSpace, components }

Variants

The Variants section controls how variant property combinations are compared and included:

• Variant Depth — Compares depths such as 1 prop at a time or 9999 (all combos)
• Empty Variants — Includes variants like { a:2, b:2 } with no overrides
• Invalid Variants — Includes invalid combos, e.g. disabled:true, hover:true
• Invalid Combinations — Summarizes as invalidPropConfigurations: { disabled:true }

Elements

The Elements section controls which layers are detected as special-purpose content:

• Glyph Name Pattern — Matches names like DS Icon Glyph / check
• Subcomponents — Matches names like Card / _ / Header within NESTED or PAGE
• Collapse Primitive Wrapper — Collapses a wrapper around a lone text or glyph child
• Default Slot Content — Emits authored defaults as slotContentExamples
• Instance Examples — Detects frames like {C} Example as instanceExamples

Props

The Props section controls how code-only and inferred props are detected:

• Code-Only Props Pattern — Detects a layer like Code only props
• Slot Constraints — Merges anyOf, minChildren, maxChildren into the slot prop
• Infer Number Props — Emits minRows: 2 as NumberProp instead of StringProp

Layout

The Layout section controls how element hierarchy is represented:

• Layout — Nests such as layout: or flattens as elements: { parent, children }

Command Line (CLI)

The CLI reads settings from specs.config.yaml, layered with command-line flags and convention-based fallbacks, so a project’s output stays consistent across every specs invocation.

Priority System

The CLI applies settings using three priority levels:

1. CLI flags (highest) - Explicit overrides for individual commands
2. Config file - Project defaults via specs.config.yaml
3. Fallbacks (lowest) - Convention-based defaults when no sources are configured

CLI Flags

CLI flags always override settings from the config file:

# Config has format.output: JSON
# Flag overrides to YAML
specs generate data/library.file.json -c Button --format yaml

Available flag overrides:

• --format → overrides config.format.output
• --variables → overrides the variables file path for that run
• --styles → overrides the styles file path for that run

Config File

Settings from specs.config.yaml apply when no CLI flag is provided. Use --config to point at a project-specific file instead of the default location:

specs generate data/library.file.json \
  -c "Button" \
  --config ./configs/mobile.config.yaml \
  -o specs/mobile/button.yaml

Fallbacks

Convention-based defaults when no sources are configured and no flags are provided:

project/
├── specs.config.yaml  # Config (if exists)
├── data/
│   ├── library.file.json      # Main file (specified in command)
│   └── foundations/           # Auto-discovery directory
│       ├── variables.json     # Auto-discovered
│       └── styles.json        # Auto-discovered

Settings File

Location

The CLI looks for a settings file in these locations (in order):

1. ./specs.config.yaml (current directory)
2. ./specs.config.json (current directory)
3. ~/.specs/config.yaml (user home directory)
4. Custom path via --config <path> flag

Format

The settings file can be written in YAML or JSON:

specs.config.yaml

# Where `specs fetch` writes payloads, and where `generate` loads them from
dataDirectory: ./data

# Default location for generated spec files (can override with -o flag)
outputDirectory: ./specs

# Figma file keys and which payloads to fetch/load
sources:
  library:
    key: REPLACE_WITH_LIBRARY_FILE_KEY
    data: ['file','variables','styles']
  foundations:
    key: REPLACE_WITH_FOUNDATIONS_FILE_KEY
    data: ['variables','styles']

# Processing and output settings (shared with the Figma plugin)
config:
  format:
    output: YAML
    keys: SAFE
    layout: LAYOUT
    tokens: TOKEN

  processing:
    subcomponents:
      match:
        - '{C} / _ / {S}'
    variantDepth: 2
    details: LAYERED

  include:
    invalidVariants: false
    invalidCombinations: true

Validation

The CLI validates every setting value and provides helpful error messages:

$ specs generate data/library.file.json -c Button
Warning: Invalid format.keys: 'invalid'. Using default: SAFE.
Valid values: SAFE, CAMEL, SNAKE, KEBAB, PASCAL, TRAIN

Invalid values fall back to defaults with warnings, so builds continue.

Best Practices

1. Version Control Your Settings File

Commit specs.config.yaml to share settings across the team:

git add specs.config.yaml
git commit -m "Add Specs CLI configuration"

2. Environment-Specific Settings Files

Use a different settings file for each environment:

project/
├── specs.config.yaml           # Default (development)
├── .specs.production.yaml       # Production
└── .specs.staging.yaml          # Staging

# Development (uses default)
specs generate data/library.file.json -c Button

# Production
specs generate data/library.file.json -c Button --config .specs.production.yaml

3. Document Custom Patterns

Add comments to explain project-specific settings:

config:
  processing:
    # Match direct children and underscore-nested subcomponents
    subcomponents:
      match:
        - '{C} / {S}'
        - '{C} / _ / {S}'
      exclude:
        - '{C} / Examples / {S}'

    # Only 2 levels: size + variant (not size + variant + state)
    variantDepth: 2

4. Consistent Key Format

Choose one key format and stick with it:

config:
  format:
    keys: CAMEL  # All keys in camelCase for consistency

See Also

• CLI Overview - CLI command options
• Getting Started - Installation and setup
